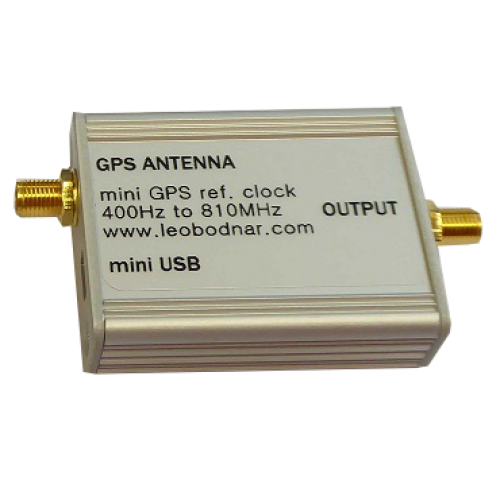

A new 400 Hz to 810 MHz output mini version of Leo Bodnar's popular low jitter GPS Clock - designed for Users with a limited budget or space restrictions, whilst still delivering accuracy and performance.
Long term stability of output signal is defined by high accuracy of GPS Caesium references and approaches 1x10-12
Short term signal quality is defined by internal TCXO clock source providing high-quality, low phase noise clock signal with sub-picosecond RMS jitter.
Digital PLL allows main output reference frequency to have almost any value between 400Hz and 810MHz.
Output signal is 3.3V CMOS levels with 50 Ohms characteristic impedance. Output drive level can be adjusted.
Output power level (measured at 10MHz, fundamental power channel):
- +13.3dBm, drive setting 32mA
- +12.7dBm, drive setting 24mA
- +11.4dBm, drive setting 16mA
- +7.7dBm, drive setting 8mA
- Powered via mini USB connector from a PC, USB phone charger or USB power bank. USB connection to Windows PC is required only for one-off configuration.
Like its big brother, the Mini Precision GPSDO Reference Oscillator can be used as an Universal Reference Clock for most other Instruments and Applications which up to now would require a bulky and expensive Rubidium Clock.
SDR-Kits recommends either version as the ideal frequency standard for supplying an external reference clock signal to the DG8SAQ Vector Network Analyzer to make Frequency and Frequency Difference measurements with accuracy approaching 1e-10 and frequency measurements (dF) in the mHz (milli Hertz) and even down to the uHz (micro Hertz) region.
Also, the Mini GPSDO can be used as an external clock for the SDRplay RSPdx, RSPduo and the older RSP2 or RSP2pro with our GPSDO - RSP External Clock-in Cable
Please note that a SMA Plug to BNC Jack Adapter Connector, or similar is required to connect the External Clock Cable to the Mini GPSDO
Please see comparison table below listing the differences between the two GPSDO models:
|Feature||Mini GPSDO (One Output)||Standard GPSDO (Two Output)|
+1E-9 within 1 min after GPS Lock
within 1 min after GPS Lock
400 Hz – 810 MHz programmable
– 810 MHz programmable
|Reference Clock Outputs and Connector Type|
1 SMA Output Connector
2 BNC Outputs programmable independently with restrictions
4 step programmable +7.7 +13.3 dBm
step programmable +7.7 +13.3 dBm
|USB Power Supply|
5V USB-cable to PC or Charger
USB-cable to PC or Charger
|External Power Supply||Not available|
Ext DC +5V - 15VDC Power connector fitted

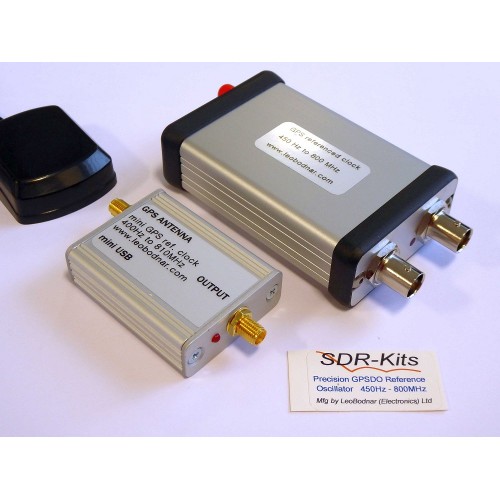

73mm x 40mm x 17mm 0.05 Kg
110mm x 60mm x 25mm 0.12 Kg
Mini GPSDO, GPS Antenna, USB Cable
GPSDO, GPS Antenna, USB Cable
Clock Source for applications requiring a single Reference Clock
Ham Station Reference Clock Source 10 MHz for Test equipment and 24 MHz for RSP1 or K3 or other Rig
How to set up the Mini GPSDO as an External Clock Reference for the VNWA 3EC: Guide to setting up Mini GPSDO as external reference clock, instead of internal VNWA TCXO when taking VNWA measurements
Precision GPSDO Module (73mm x 40mm x 17mm - 0.05Kg)
GPS Magnetic Antenna with 5m Coax Cable and fitted SMA male plug
USB Cable A to Mini B
12 month Mfg Warranty
Mfg Product Support information
Optional Items to add to your order:
RG223 cable Length 20 cm BNC Plug (male) to SMA Plug (male)
This is a custom made cable to connect the VNWA 3EC External Clock input to the Precision GPSDO Reference Oscillator
Replacement GPSDO Antenna: Cable length 5 m, fitted with SMA Plug (male) connector
This is a replacement or additional GPS Antenna identical to the one supplied with the Precision GPSDO Reference Oscillator
GPSDO - RSP External Clock-in Cable plus SMA Plug to BNC Jack Adapter Connector
SDR-Kits is an Authorised Distributor for the Leo Bodnar Ltd Precison GPSDO Reference Oscillator
Also available from our Authorised Distributor for Japan: ICAS Enterprises www.ICAS.to
Mini Low Jitter Precision GPSDO Reference Oscillator (1 Port)
- Product Code: Mini Low Jitter Precision GPSDO Reference Oscillator
- Availability: In Stock
- incl VAT: £114.00
- Indicative prices in EURO €109,25
- Indicative prices in USD $119.70
Tags: GPS Clock
