SMA connector upgrade kit to 3SE Automatic 2 Port VNA

Back in stock - regret price increase due to 30% price increase of enclosure, PCB assy and SMA Bulkhead connectors

This upgrade kit is to upgrade/convert an existing, fully working VNWA 3E or 3EC to the new VNWA 3SE Automatic 2 Port SMA Connector version.

The upgrade is not difficult and can be done by VNWA 3E owners who accept that two 10mm x 3mm slots will need to be made in the Brass VNWA chassis, either with a small key file or using a sheet nibbler tool.

To see our what is required for the upgrade please check-out the VNWA3SE 2-Port Upgrade assembly manual before ordering.

The VNWA 3SE upgrade kit comes with a new VNWA enclosure with double the depth compared with the existing VNWA 3EC Enclosure hence offering improved stability

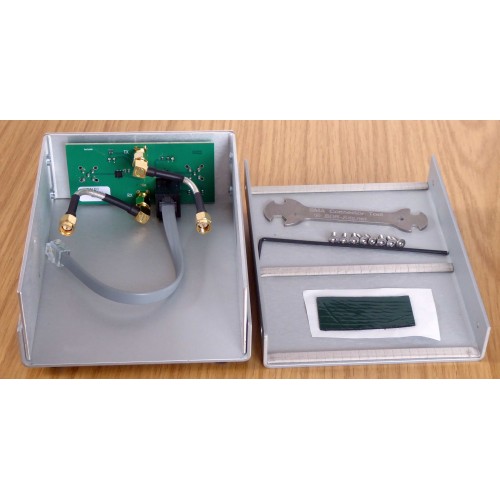

Contents:

• VNWA 3SE upgrade kit fitted with 2port switch with SMA Port Connectors fully tested

• 2mm hex tool and a SDR-Kits SMA spanner (non-torque model)
• 24 Month 'Return to Base' Warranty on the VNWA 3SE upgrade kit.
• VNWA3SE Upgrade assembly manual with commissioning graph showing typical Dynamic Range of the 2 Port switch used with a typical VNWA 3E used during commissioning prior shipment.


Dimensions: width 17 cm, depth 11 cm, height 5.3 cm, weight 0.75 Kg

Note: To complete the upgrade to VNWA 3SE  requires fitting of a fully functioning VNWA 3E or 3EC, which is NOT supplied in this kit
Also a calibration kit and thru cables are not included with this kit.

Optional items to add to your order:

• Sheet Nibbler Tool - for use in the conversion procedure


• A SMA Calibration Kit to essential to use this instrument -  Most VNWA 3EC owners may already have SMA accessories

• Storage Case for VNWA 3SE SMA or N Connector Version
