600MHz BNC 3 pcs Plug (Male) Calibration kit  for FA5-VA5 Analyzer Kit and DG8SAQ VNWA fitted with BNC Bracket Option

Offering accurate calibration up to 600 MHz - also suitable for other Test Equipment.

The kit Includes a BNC Shorting Plug, BNC Open Plug and a Calibrated 50Ω Load Plug (Male) and is supplied in plastic bag

The BNC Load is marked with batch and serial number and is supplied with a print-out of  the measured data in the format below which may then be entered manually in the instrument setup
The print-out also provides the download link of the VNWA BNC Calibration Kit file (VNWA .ckf format) for the BNC load supplied
This file may be stored direct in the VNWA Directory DefaultCalKit  for use when the BNC Cal Kit is being used.
Please note:  Calibration of the VNWA will still be required to compensate for VNWA hardware differences.

For all kits supplied the Open Delay = - 41.66 ps and Short Delay = -113.52 ps


-------------------------------------------------------------------------

Batch B001 - s/n 0031

Male load, arbitrary VNWA model:

L = x.yy nH + 0.xx aH/Hz * f

R = 50.21 Ohm

Delay = -xxx.yy ps

Male load, arbitrary VNWA model:

-------------------------------------------------------------------------


Male load, simple VNWA model:

L = x.yy nH

C|| = 0 fF

R = 50.20 Ohm

Delay = -xxx.yy ps

-------------------------------------------------------------------------

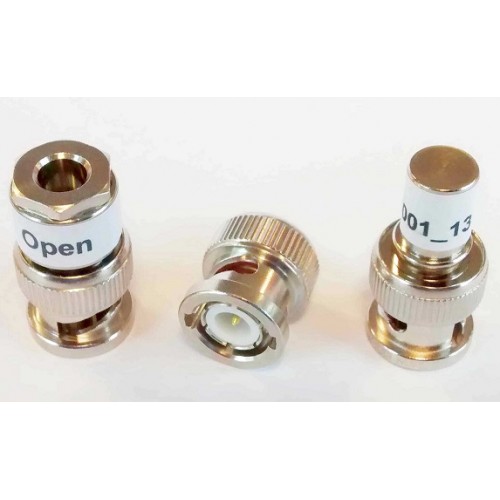

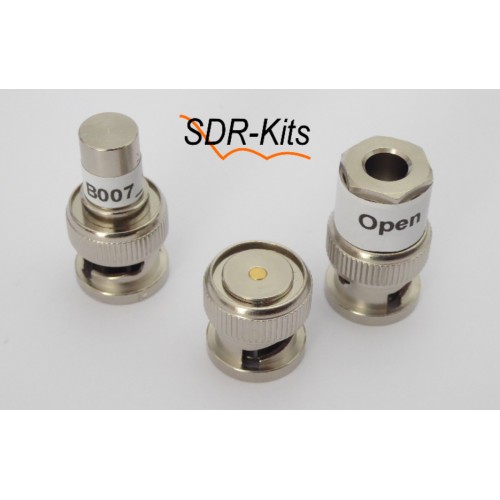

BNC 3-pc Male Calibration Kit fully assembled with Data

  • Product Code: BNC Cal Kit - 3pcs
  • Availability: In Stock
  • £11.50

  • incl VAT: £13.80
  • Indicative prices in EURO: €13.45, incl VAT: €16.15
  • Indicative prices in USD $15.18
