• N Connector 4-pc (Male and Female) Universal Calibration Kit -  with Data

1300 MHz N 4-pc Universal Calibration kit  for DG8SAQ VNWA 3SE fitted N Connectors or VNWA3EC with N Bracket Option

Male and Female Calibration Kit offering accurate calibration up to 1300 MHz - may be suitable for other Test Equipment.

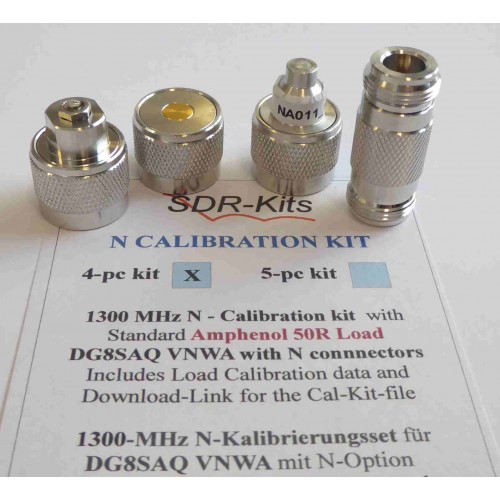

The kit Includes:

  • 1pc N Shorting Plug

  • 1pc N Open Plug,

  • 1pc N Jack to N Jack Adapter

    • 1pc measured Amphenol 50Ω Load  (termination) Plug

        The N Load is marked with a batch and serial number and is supplied with a print-out of the measured data in the format below, which may then be entered manually in the VNWA instrument setup

        The print-out also provides the download link of the VNWA N Calibration Kit file (VNWA .ckf format) for the N load supplied. This file may be stored direct in the VNWA Directory DefaultCalKit  for use when the N Cal Kit is being used.

        Please note:  Calibration of the VNWA will still be required to compensate for VNWA hardware differences.

        Example of printout of the measured data supplied with the Load

        N4A007 Load #15 SDR-Kits.net 09/08/2020

        -------------------------------------------------------------------------

        Male load, simple VNWA model:
        Delay =  ps
        R = 50.28 Ohm
        C|| = 0.01 fF
        L = 0.12 nH

        -------------------------------------------------------------------------

        Male load, arbitrary VNWA model:
        Delay =  ps
        R = 50.29 Ohm
        RF = -0.98 uOhm/sqrt(Hz)
        C|| = -21.42 fF
        L = -0.05 nH
        L1 = -0.01 aH/Hz
        ------------------------------------------------------------------------

        Female load, consists Male N load + N Female - Female Adapter

        same data supplied as for Male Simple and Male arbitrary load

        -------------------------------------------------------------------------

        Male Short Delay =  Delay ps

        Male Open Delay =  Delay ps

        Male Thru Delay =    Delay ps

        Female Short Delay = Delay ps

        Female Open Delay =  Delay ps

        Female Thru Delay =  Delay ps

        -------------------------------------------------------------------------

        manual download: https://www.sdr-kits.net/index.php?route=calkitmodel/download

        automatic download code: N4A007_15_DGX_PDA_DRQ

        N Connector 4-pc (Male and Female) Universal Calibration Kit - with Data

        • Product Code: N Cal Kit - 4pc Universal std
        • Availability: In Stock
        • £49.00

        • incl VAT: £58.80
        • Indicative prices in EURO: €53.90, incl VAT: €64.68
        • Indicative prices in USD $64.68
