1300MHz N 5-pc Universal Calibration Kit  for DG8SAQ VNWA 3SE fitted N Connectors or VNWA3EC with N Bracket Option - includes Premium Mini Circuits 50Ω Termination Plug

Male and Female Calibration kit offering accurate calibration up to 1300 MHz - may be suitable for other Test Equipment.

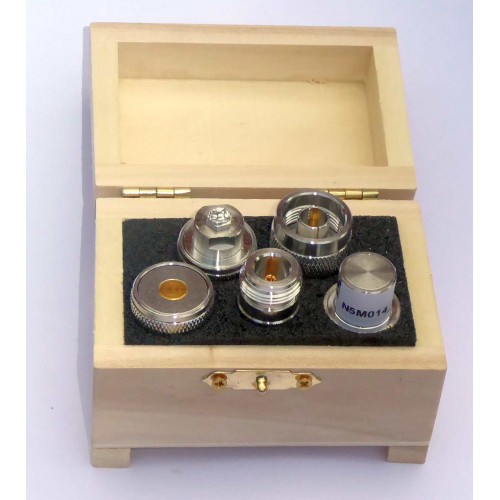

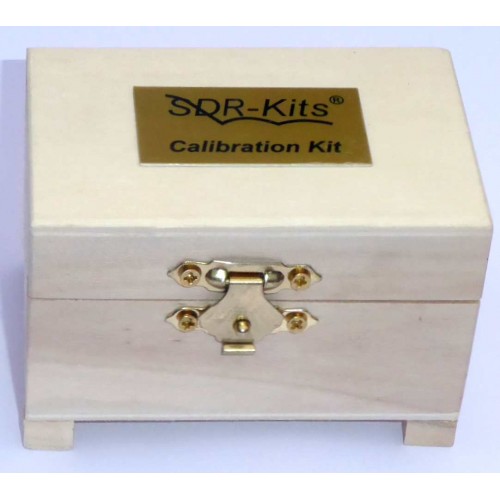

The kit comes in a wooden box measuring 9 x 6 x 6 cm with aluminium name plate, custom foam interior and includes:

       - 1pc N Shorting Plug

       - 1pc N Open Plug

      -  1pc N Jack to N Jack Adapter

      -  1pc N Plug to N Plug Adapter

      -  1pc Measured Premium Mini Circuits KARN-50-18+ 50Ω Termination Plug (Load)

The N Load is marked with a batch and serial number and is supplied with a print-out of  the measured data in the format below, which may then be entered manually in the VNWA instrument setup

The print-out also provides the download link of the VNWA N Calibration Kit file (VNWA .ckf format) for the N load supplied. This file may be stored direct in the VNWA Directory DefaultCalKit  for use when the N Cal Kit is being used.

Please note:  Calibration of the VNWA will still be required to compensate for VNWA hardware differences.

Example of printout of the measured data supplied with the Load

N4M009 Load #7 SDR-Kits.net

-------------------------------------------------------------------------

Male load, simple VNWA model:
Delay =  ps
R = 50.28 Ohm
C|| = 0.01 fF
L = 0.12 nH

-------------------------------------------------------------------------

Male load, arbitrary VNWA model:
Delay =  ps
R = 50.29 Ohm
RF = -0.98 uOhm/sqrt(Hz)
C|| = -21.42 fF
L = -0.05 nH
L1 = -0.01 aH/Hz
------------------------------------------------------------------------

Female load, consists Male N load + N Female - Female Adapter

same data supplied as for Male Simple and Male arbitrary load

-------------------------------------------------------------------------

Male Short Delay =  Delay ps

Male Open Delay =  Delay ps

Male Thru Delay =    Delay ps

Female Short Delay = Delay ps

Female Open Delay =  Delay ps

Female Thru Delay =  Delay ps

-------------------------------------------------------------------------

manual download: https://www.sdr-kits.net/index.php?route=calkitmodel/download

automatic download code: N4M009_7_DGX_PDA_DRQ

Mini Circuit Termination - 5 part N Connector (Male and Female) Calibration Kit

  • Product Code: N Cal Kit - 5pc MiniCkt load
  • Availability: In Stock
  • £77.50

  • incl VAT: £93.00
  • Indicative prices in EURO: €85.25, incl VAT: €102.30
  • Indicative prices in USD $102.30
