A GPS-Style Active L-Band Patch Receive Antenna to explore and experiment with reception of satellite signals on frequencies 1535 MHz to 1550 MHz.
Suitable for SDRPlay SDR Radios (RSP1A, RSPdx, RSPduo, RSP2 and RSP2pro) and also for other Radios fitted with Bias Tee facility supplying 3V – 5V DC.
Can provide reception of signal with popular JAERO software and other software where not forbidden by local Laws.
The Patch Antenna can be conveniently mounted by fixing a 10cm x 10cm iron angle bracket to an outside mast or other object and the magnet will hold the Antenna securely in place - similarly when placing the Antenna on top of the roof of a car for mobile reception.
Frequency band 1535 MHz – 1550 MHz for Right Hand Circular Polarized (RHCP) typically Inmarsat Satellites

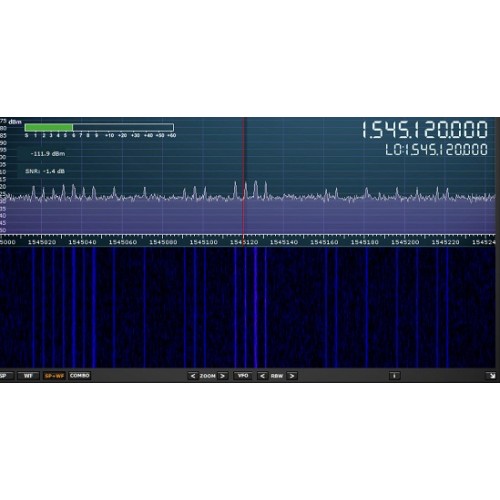

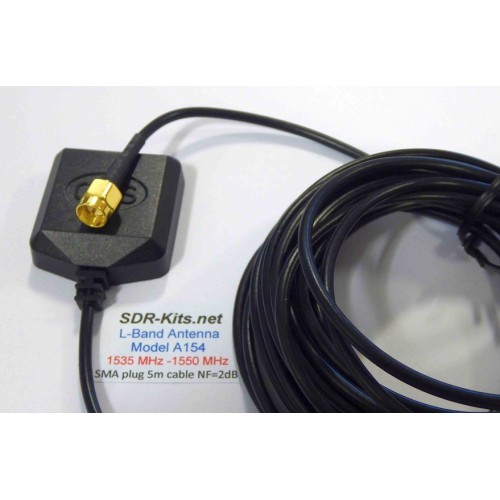

Cable RG174 length 5 meters fitted with male SMA plug connector
Noise Factor < 2dB
Fitted with strong Magnet
Temperature Range: -40 to +85 C
Note: Reception on L-band frequencies from geostationary satellites requires the Antenna to be placed in a OUTSIDE Location with a clear view of the Satellite.
Unlike GPS signal - no reception is possible when the antenna is placed inside a car or inside buildings.
Adverse weather (rain or snow) and also change in Satellite
radiating footprint during the day may affect reception.
For tips on successfully using the L-Band Antenna watch this Youtube Video by Frugal Radio: https://youtu.be/RU7R0st1W28. Please note that Robin is an experienced User - if you are new to L-Band you may need to experiment and perservere to get the most out of the Antenna in your particular location.
Product Support Information:
Please read the following information before ordering the Antenna to avoid potential disappointment:
- This Antenna is designed to our specification and is successfully used with all SDRPlay Radios, RSP1A, RSP2, RSP2pro and RSPduo by many of our Customers.
- Successful operation has not been tested with other manufacturer's radios, like RTLSDR dongle which may have different front-end chips depending on the manufacturer.
- This is an Active Antenna with internal low-noise amplifier which will only work with Radios which have +5V Bias-Tee option.
- Bias-Tee must be enabled in software and LNA Gain and IF Gain controls must be set to maximum. When enabling Bias-Tee option you should immediately see the background noise increase by at least 10dB on the Panoramic Display.
- The Antenna comes with a standard cable length of 5 meters. Do NOT insert additional antenna cables, splitters or low-noise preamps as this will increase the overall losses which may not be recovered with a second LNA amplifier.
- Successful operation may not be possible if the antenna is located within 50m-100m distance from a nearby Mobile Telephone Base-Station or from local Transmitters operating nearby. A good test is to take the RX and the Antenna out into the countryside and place on top of a car roof.
- It is advisable to mount the antenna on a 12cm x 12cm or 9.3mm round dia metal sheet simulating a car roof which will give between 1.5 - 2.5dB additional gain.
- Omni directional in horizontal and vertical plane, however about 1-2 db extra gain can be obtained by pointing the patch antenna towards a satellite.
L-Band Inmarsat RHCP Receive Antenna A154R for 1540 MHz Band
- Product Code: L-Band Receive Antenna A154 RHCP
- Availability: In Stock
- incl VAT: £12.90
- Indicative prices in EURO €12,36
- Indicative prices in USD $13.54
