• New in Stock!

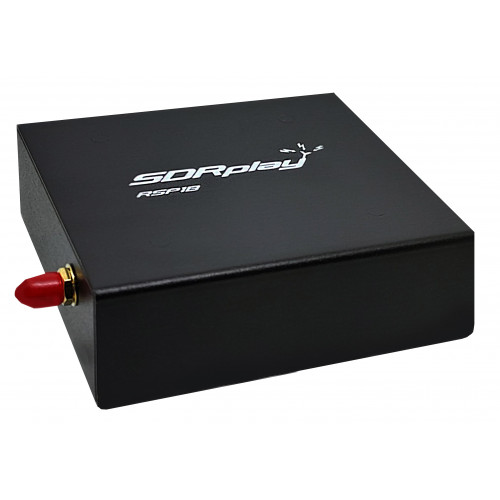

    SDRplay RSP1B 1 kHz - 2000 MHz Wideband SDR Receiver

    Just launched! The RSP1B is an enhanced version of the popular RSP1A powerful wideband full featured 14-bit SDR which covers the RF spectrum from 1kHz to 2GHz. The RSP1B comes in a rugged black painted steel case and has significantly improved noise performance.

    The RSP1B has the following additional benefits compared to SDRplay's lowest cost device, the RSP1A:

    1. It has improved signal handling at HF frequencies.
    2. It has significantly improved noise performance below 1MHz (i.e. for MF, LF and below), and in the 50-60 MHz region. There are also noticeable noise improvements in the 3.5-5.5MHz and 250-320MHz spectrum.
    3. It is housed in a strong black painted steel case.

      Like the other SDRplay receivers, all it needs is a computer and an antenna to provide excellent communications receiver functionality. It comes with a choice of SDRunoTM for Windows and multiplatform SDRconnectTM SDR software for Windows, MacOS and Linux (supplied free of charge by SDRplay). It allows users to monitor up to 10MHz of spectrum at a time. A documented API allows developers to create new demodulators or applications around the platform.

        Key Features of the RSP1B

        • New, enhanced version of the RSP1A in a rugged black painted steel case
        • Improved noise performance below 1MHz and in the 3.5-5.5MHz, 50-60 MHz and 250-320MHz range
        • Improved signal handling at HF frequencies.
        • Covers all frequencies from 1kHz through VLF, LF, MW, HF, VHF, UHF and L-band to 2GHz, with no gaps
        • Receive, monitor and record up to 10MHz of spectrum at a time
        • 14-bit ADC silicon technology for excellent dynamic range
        • Multiple high-performance preselect filters minimize phantom signal problems
        • Software selectable AM/FM & DAB broadcast band notch filters minimise intermodulation problems from strong interferers
        • Multiple individual receivers in any 10MHz slice of spectrum
        • Powers over the USB cable with a simple, robust type B socket
        • Software selectable 4.7V Bias-T for powering an external remote antenna amplifier
        • Calibrated S meter/ RF power and SNR measurement
        • Compatible with many 3rd Party software digital decoders
        • Documented API provided to allow demodulator or application development on multiple platforms
        • Strong and growing software support network

        Download SDRplay RSP1B Datasheet

        Also available:

        SDRplay RSP1A 1 kHz - 2000 MHz Wiseband SDR Receiver

        SDRplay RSPdx 1 kHz - 2000 MHz Wideband SDR Receiver

        SDRplay RSPduo Dual Tuner 1 kHz - 2000 MHz Wideband SDR Receiver

        Package Contents:   1 pcs SDRplay RSP1B with "Getting Started" information.

        Note:   The SDRPlay RSP1B requires a standard USB-A plug to USB-B plug Cable.
        This USB Cable is NOT supplied with the RSP1B as the majority of SDRPlay buyers will already have such a cable available.

        Additional optional Items to add to your order:

        USB Cable for SDRplay RSP SDR Receivers USB-A to USB-B

        SMA Plug to BNC Jack Adapter Connector - this allows the RSP1B to be used with common standard BNC Connectors

        Loop and L-Band Antennas for SDRplay receivers

        Warranty

        The SDRplay RSP1B comes with standard 12 month warranty, except for those EEC Countries where Local Legislation provides for additional warranty terms. SDR-Kits as a UK Distance Seller complies with the local EEC legislation.
        SDR-Kits warranty includes parts and labour and the cost of return shipping, provided the product has not been misused. Specifically the RF Power applied to the RSP1B Antenna socket should be limited to a maximum of +10dBm to avoid damage to the RSP1B.

        SDR-Kits is an Authorised Distributor for SDRPlay Products Worldwide

        The RSP1B is available from stock - We ship within 48 hours via Registered Post / Tracked Airmail.

        RSP1B product is sold through SDR-Kits' Authorised Resellers for the following Country:

        Japan:  ICAS Enterprises   www.ICAS.to

        SDRplay RSP1B 1 kHz - 2000 MHz Wideband SDR Receiver

        • Product Code: SDRplay RSP1B SDR RX assembled and tested
        • Availability: In Stock
        • £102.45

        • incl VAT: £122.95
        • Indicative prices in EURO €119,87
        • Indicative prices in USD $130.12
