Please find below our range of Packages for the new VNWA 3SE Automatic 2 Port SMA Version

The VNWA 3SE offers the same dynamic range and specification as the 3 and 3EC models, but also features a Solid-State 2-Port switch which eliminates the need for manual reversal of Device under Test (DUT), allowing forward and reverse S11, S12, S21 and S22 measurements to be taken with a single key click.

Upgrade Kits: VNWA 3E/3EC owners can upgrade their VNWA to the VNWA 3SE 2 Port SMA or N Version using an Upgrade Kit.

For the VNWA 3 and 3EC range see here

A wide range of VNWA Accessories are available to buy separately from our Webshop.

DG8SAQ VNWA 3SE Automatic 2 Port Models

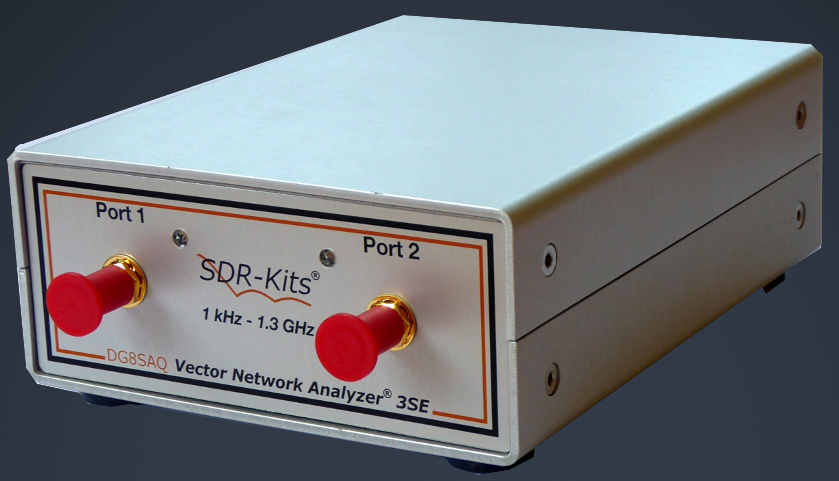

VNWA 3SE Automatic 2 Port VNA - SMA Connectors with Accessories

Designed by Thomas Baier DG8SAQ, VNWA Driver and Software now runs on all recent Windows 64 bit and 32 bit Operating Systems, including Windows 10, 8.1 & 8, Windows 7 and Windows Vista.

  • VNWA 3SE offering Automatic 2 Port Measurement and external clock connector
    in anodized enclosure - fully assembled and tested and includes all basic accessories to enable
    making automatic 2 port measurments

  • 3pcs Amphenol Connex Calibration Kit with VNWA Amphenol Calibration Kit information sheet

  • 20cm long SMA Plug (Male) to SMA Plug (Male) RG223 Thru Cable
    for thru calibration between TX and RX port, fitted with Spinner Grips

  • Good Quality USB Cable fitted with fitted ferrite core for interference suppression

  • VNWA 3SE "Getting Started Manual

  • 24 Month 'Return to Base' Warranty

    Dimensions: width 17 cm, depth 11 cm, height 5.3 cm, weight 0.54kg


    £499.00, incl VAT: £598.80

    Indicative prices in EURO: €548.90, incl VAT: €658.68

    Indicative prices in USD $658.68

    VNWA 3SE Automatic 2 Port VNA with SDR-Kits 4 pcs SMA Cal Kit of Amphenol Parts

    Designed by Thomas Baier DG8SAQ, VNWA Driver and Software now runs on all recent Windows 64 bit and 32 bit Operating Systems, including Windows 10, 8.1 & 8, Windows 7

    • VNWA 3SE offering Automatic 2 Port Measurements and external clock connector in anodized enclosure - fully assembled and tested

    • 4 pcs SDR-Kits SMA SOL Calibration Kit of Amphenol Connex parts supplied in natural wooden box with anodised gold-coloured nameplate containing:
    • 1 pc SMA Plug (Male) 50 Ohm load
    • 1 pc SMA Plug (Male) 0 Ohm short
    • 1 pc SMA Jack - Jack (Female-Female) Open connector /Adapter
    • 1 pc SMA Plug - Plug (Male-Male) open connector /Adapter
    • 20 cm long SMA Plug (Male) to SMA Plug (Male) RG223 Thru Cable for
      thru calibration between TX and RX ports, fitted with Spinner Grips

    • Good Quality USB Cable fitted with ferrite

    • VNWA 3SE "Getting Started" booklet

    • 24 months return to base Warranty

      Dimensions: width 17 cm, depth 11 cm, height 5.3 cm, weight 0.54KG

      £529.00, incl VAT: £634.80

      Indicative prices in EURO: €581.90, incl VAT: €698.28

      Indicative prices in USD $698.28

      VNWA 3SE Automatic 2 Port VNA with SDR Kits SMA Cal Kit of Premium 12 GHz Parts

      Designed by Thomas Baier DG8SAQ, VNWA Driver and Software now runs on all recent Windows 64 bit and 32 bit Operating Systems, including Windows 10, 8.1 & 8, Windows 7 and Windows Vista

      • VNWA 3SE offering automatic 2 Port Measurement and external clock connector in anodized enclosure - fully assembled and tested

      • 4 pcs Premium 12 GHz SMA SOL Calibration parts rated for use up to 12 GHz supplied in varnished wooden box  with anodised gold-coloured aluminium nameplate containing:
      • 1 pc 50 Ohm 1 Watt Jack (female) load
        The actual  value of the load supplied is measured and recorded by SDR-Kits on label inside the calibration box
      • 1 pc 0 0hm Short Jack (female)
      • 1 pc SMA Jack - Jack (Female-Female) Open connector & Adapter
      • 1 pc SMA Plug - Plug (Male-Male Open) connector & Adapter
      • 20cm long SMA Plug (Male) to SMA Plug (Male) RG223 Thru Cable for thru calibration between TX and RX ports, fitted with Spinner Grips

      • Good Quality USB Cable fitted with ferrite

      • VNWA 3SE "Getting Started Manual"

      • 24 Month 'Return to Base' Warranty

        Dimensions: width 17 cm, depth 11 cm, height 5.3 cm, weight 0.54 Kg

      £564.00, incl VAT: £676.80

      Indicative prices in EURO: €620.40, incl VAT: €744.48

      Indicative prices in USD $744.48

      VNWA 3SE Automatic 2 Port VNA - SMA  Connector Version upgrade kit for existing VNWA 3E/3EC VNWAs

      Two versions are available: this kit has SMA Port Connectors, a very popular connector in lab environment.  A 2 Port upgrade kit with N connectors is also available.

      The upgrade is not difficult and can be done by VNWA 3E owners who accept that two 10mm x 3mm slots will need to be made in the Brass VNWA chassis, either with a small key file or using a sheet nibbler tool

      To see our what is required for the upgrade please check-out the VNWA3SE 2-Port Upgrade assembly manual before ordering.

      The VNWA 3SE upgrade kit comes with a new VNWA enclosure with double the depth compared with the existing VNWA 3EC Enclosure hence offering improved stability

      Contents:

      • VNWA 3SE upgrade kit fitted with 2 port switch with SMA Port Connectors fully tested

      • 2mm hex tool and a SDR-Kits SMA spanner (non-torque model)

      • 24 Month 'Return to Base' Warranty on the VNWA 3SE upgrade kit

      • VNWA3SE Upgrade assembly manual

      • Commissioning graph showing typical Dynamic Range for S11/S21 and S22/12

      Note: Calibration Kit is not included but is a requirement to use this product.

      Dimensions: width 17 cm, depth 11 cm, height 5.3 cm, weight 0.54 Kg

      £119.00, incl VAT: £142.80

      Indicative prices in EURO: €130.90, incl VAT: €157.08

      Indicative prices in USD $157.08
