Designed by Thomas Baier DG8SAQ, VNWA Driver and Software runs on all recent Windows 64 bit and 32 bit Operating Systems, including Windows 10, 8.1 & 8, Windows 7 and Windows Vista.

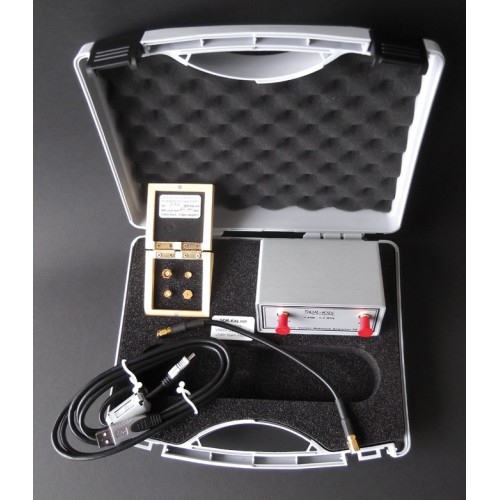

  • VNWA 3EC with fitted expansion board and external clock connector in anodized enclosure - fully assembled and tested

  • Presentation Storage box
  • 4 pcs Premium 12 GHz SMA SOL Calibration parts rated for use up to 12 GHz supplied in varnished wooden box  with anodised gold-coloured aluminium nameplate containing:
  • 1 pc 50 Ohm 1 Watt Jack (female) load
    The actual  value of the load supplied is measured and recorded by SDR-Kits on label inside the calibration box
  • 1 pc 0 0hm Short Jack (female)
  • 1 pc SMA Jack - Jack (Female-Female) Open connector & Adapter
  • 1 pc SMA Plug - Plug (Male-Male Open) connector & Adapter
  • 20 cm long SMA Plug (Male) to SMA Plug (Male) RG223 Thru Cable for thru calibration between TX and RX ports, fitted with Spinner Grips

  • Good Quality USB Cable fitted with ferrite Choke

  • VNWA 3EC "Getting Started" booklet

  • 24 months return to base Warranty

More detailed product information on our DG8SAQ VNWA 3 Webpages

Optional items to add to your order:

      DG8SAQ USB-Controlled VNWA 3EC (Expansion board) in Presentation Case with SDR-Kits Cal Kit of Premium 12 GHz Parts

      • Product Code: VNWA 3EC in Presentation Case with 12 GHz female Cal Kit
      • Availability: In Stock
      • £475.00

      • incl VAT: £570.00
      • Indicative prices in EURO: €541.50, incl VAT: €649.80
      • Indicative prices in USD $598.50
