New! VNWA 3SE - Inclusion of a solid-state 2-Port switch eliminates the need for manual reversal of the Device under Test (DUT), allowing forward and reverse measurements to be taken with a single key click.

Designed by Thomas Baier DG8SAQ, VNWA Driver and Software runs on all recent Windows 64 bit and 32 bit Operating Systems, including Windows 10, 8.1 & 8, Windows 7 and Windows Vista.

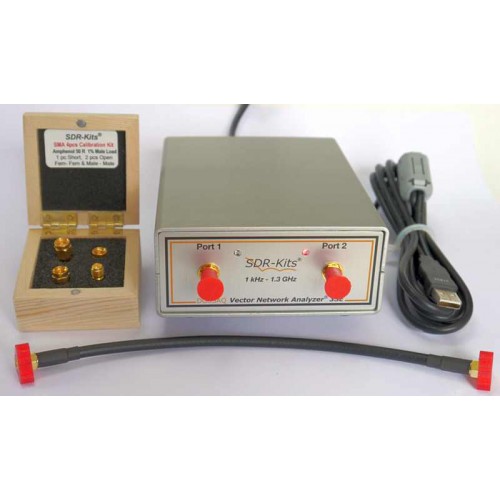

  • VNWA 3SE offering Automatic 2 Port Measurement and external clock connector in anodized enclosure - fully assembled and tested

  • 4 pcs SDR-Kits SMA Calibration Kit of Amphenol Connex parts supplied in natural wooden box  with anodised gold-coloured aluminium nameplate containing:
  • 1 pc SMA Plug (Male) 50 Ohm load
  • 1 pc SMA Plug (Male) 0 Ohm short
  • 1 pc SMA Jack - Jack (Female-Female) Open connector /Adapter
  • 1 pc SMA Plug - Plug (Male-Male) open connector /Adapter
  • 20cm long SMA Plug (Male) to SMA Plug (Male) RG223 Thru Cable for thru calibration between TX and RX ports, fitted with Spinner Grips

  • Good Quality USB Cable fitted with ferrite

  • VNWA 3SE "Getting Started" booklet

  • 24 months return to base Warranty

More detailed product information on our DG8SAQ VNWA 3 Webpages


Optional items to add to your order:

  • Additional RG223 coax Cable for measuring transmission loss (S21) of filters etc

    Optional VNWA3SE Presentation - Storage Case is expected to be available from August 2020

  • SMA Adapters

  • Consider purchasing a SMA Torque Spanner  - an essential tool to obtain repeatable measurements as used by  Professional RF Engineers.

  • Magi-Cal® Automatic SMA Calibrator - performs an automatic one port or two port VNWA calibration with a single connect cycle.

    DG8SAQ USB-Controlled VNWA 3SE Automatic 2 Port VNA with SDR-Kits 4 pcs SMA Cal Kit of Amphenol Parts

    • Product Code: VNWA 3SE with 4pcs Cal Kit of Amphenol parts
    • Availability: In Stock
    • £529.00

    • incl VAT: £634.80
    • Indicative prices in EURO: €592.48, incl VAT: €710.98
    • Indicative prices in USD $671.83
