• New Lower Price

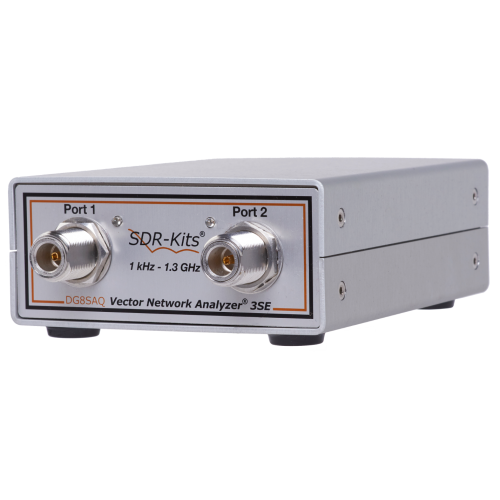

    DG8SAQ USB-Controlled VNWA 3SE Automatic 2 Port VNA: N-Connector Version - Refurbished as New with full Warranty

VNWA 3SE Automatic 2 Port VNA - N-Connector version Sorry, sold out - new stocks expected April 2024

This new Vector Network Analyzer version is produced in response to Customer requests over the years for an N connector version in addition to the standard VNWA SMA connector products.
Whereas the SMA (Subminiature Version A) connector is a small but common microwave connector used for lower power applications in semi-professional Lab and educational use, the medium size N connector is extensively used for medium power applications. Typical use of the N Connector VNWA for instance is for measuring components and systems fitted with this type of connector.

VNWA 3SE: Features a solid-state 2-Port switch which eliminates the need for manual reversal of the Device under Test (DUT), allowing forward and reverse measurements to be taken with a single key click.

Designed by Thomas Baier DG8SAQ, VNWA Driver and Software now runs on all recent Windows 64 bit and 32 bit Operating Systems, including Windows 11, 10, 8.1 & Windows 8.

Dynamic Range >90dB from 1 kHz to 100 MHz, >70dB to 500 MHz and better than 50dB to 1.3 GHz
Sampling time from 0.13ms up to 100ms  - max 65000 Measurement points per sweep  - Max sweep duration 30s

    • VNWA 3SE with N-Connectors offering Automatic 2 Port Measurement and external clock connector in anodized enclosure - fully assembled and tested

    • Good Quality USB Cable fitted with ferrite


    • VNWA 3SE "Getting Started Manual"

    • 24 Month 'Return to Base' Warranty

    Dimensions: width 17 cm, depth 11 cm, height 5.3 cm, weight 0.63 Kg

    More detailed product information on our DG8SAQ VNWA 3 Series Webpages

    Note: Calibration Kit is not included but is a requirement to use this product.

    Optional items to add to your order:

    DG8SAQ USB-Controlled VNWA 3SE Automatic 2 Port VNA: N-Connector Version - Refurbished as New with full Warranty

    • Product Code: VNWA 3SE - N Connector version
    • Availability: Out Of Stock
    • £349.00

    • incl VAT: £418.80
    • Indicative prices in EURO €408,33
    • Indicative prices in USD $445.15
