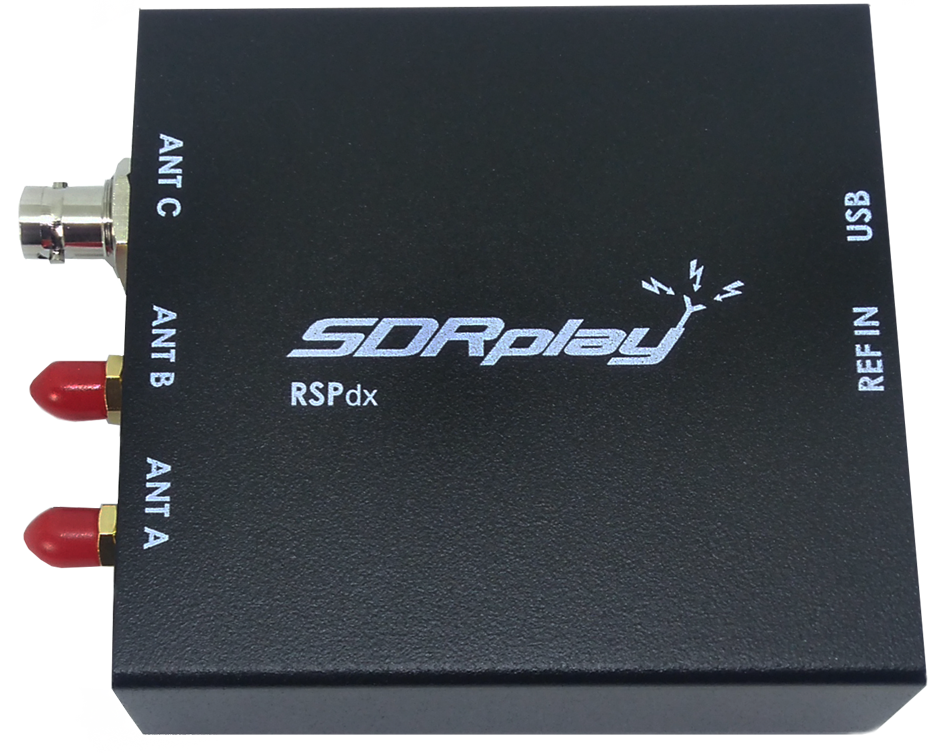

SDRplay RSPdx 1 kHz - 2000 MHz Wideband SDR Receiver

A replacement for the highly successful RSP2 and RSP2pro models, this new SDR Receiver has been extensively redesigned to provide enhanced performance including additional and improved pre-selection filters, improved intermodulation performance, the addition of a user selectable DAB notch filter and more software selectable attenuation steps.

With three software selectable antenna inputs and free professional software providing an ever-increasing feature set, the versatile RSPdx is also ideally suited to a wide range of industrial, scientific & educational applications.

Used in conjunction with SDRplay’s own SDRuno software, the RSPdx features a special HDR (High Dynamic Range) mode for reception within selected bands below 2 MHz, delivering improved intermodulation performance and fewer spurious responses for these challenging bands.

The RSPdx also features a 24 MHz ‘plug and play’ reference clock input which allows the unit to be synchronised to an external reference clock, such as Leo Bodnar's GPS disciplined oscillator (GPSDO), also available from our Webshop

The Receiver comes fully assembled and tested, and requires a Personal Computer, one of the SDR Receiver Application programs as well as a suitable antenna to provide excellent communications receiver functionality.


        Key Features

  • 14-bit SDR Receiver covering all frequencies from 1kHz through VLF, LF, MW, HF, VHF, UHF and L band to 2GHz, with no gaps

  • Receive, monitor and record up to 10 MHz of spectrum at a time

  • Supports up to 3 simultaneously connected antennas (2 x 50 Ohms and 1 BNC Connector for lower frequencies)

  • External clock input and output for synchronisation purposes, or connection to GPS reference clock for extra frequency accuracy

  • Performance below 2MHz substantially enhanced - improved dynamic range and selectivity

  • Enhanced ability to cope with extremely strong signals

  • Excellent dynamic range for challenging reception conditions

  • Housed in strong steel case

  • Multiplatform driver and API support including Windows, Linux, Mac, Android and Raspberry Pi 3/4

    Free Professional Software

    When used together with SDRplay’s own SDRuno SDR Software, the RSPdx becomes a high performance general coverage receiver or spectrum monitoring instrument for the lab. A stand alone spectrum analyser software package is also available


    • World Class SDR software for Windows

    • Up to 16 individual receivers in any 10MHz slice of spectrum using SDRuno
    • Calibrated S meter and accurate power and SNR measurements with SDRuno

      • Ever-increasing feature set

      • Documented API for new apps development

      SDRplay's Youtube demo

      The RSPdx is also compatible with HDSDR, SDR-Console and Cubic SDR software packages


      Download SDRplay RSPdx Datasheet

      SDRplay RSPdx available now from our Webshop

      Package Contents:  1 pcs SDRplay RSPdx  with "Getting Started" information.

      Note:   The SDRPlay RSPdx requires a standard USB-A plug to USB-B plug Cable.
      This USB Cable is NOT supplied as the majority of SDRplay buyers will already have such a cable available.

      Warranty

      The SDRplay RSPdx comes with standard 12 month warranty, except for those EEC Countries where Local Legislation provides for additional warranty terms.  SDR-Kits as a UK Distance Seller complies with the local EEC legislation. SDR-Kits warranty includes parts and labour and the cost of return shipping, provided the product has not been misused. Specifically the RF Power applied to the RSPdx Antenna socket should be limited to a maximum of +10dBm to avoid damage to the RSPdx.

      SDR-Kits is an Authorised Distributor for SDRplay Products Worldwide

      RSPdx product is sold through SDR-Kits Authorised Reseller for Japan:  ICAS Enterprises   www.ICAS.to
