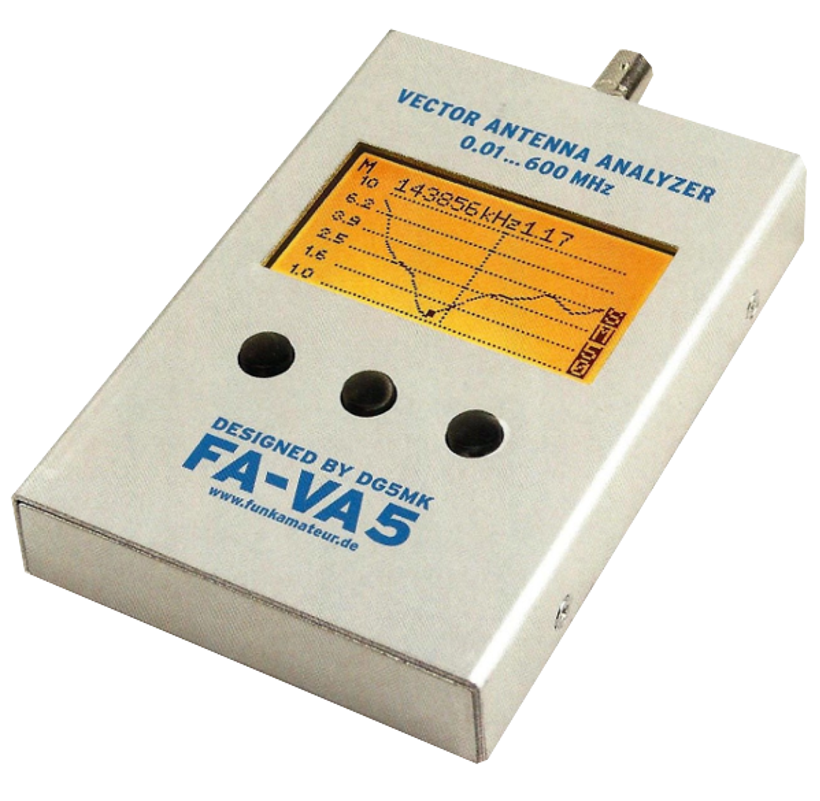

FA-VA5 600MHz Vector Antenna Analyzer Kit
Now available as a 99% Assembled and Tested Kit
The VA5 is a portable, full-featured Vector Measuring Device with a frequency range of 10 kHz to 600 MHz, with the added benefit of a USB port for connection to a computer.
designer, Michael Knitter DG5MK, has taken feedback from users of the
previous VA4 instrument and incorporated many new
features in the VA5, whilst maintaining high performance and excellent
value for money.
- Small dimensions 15 x 8.5 x 2.2 cm - fully portable
- Large display with good readability
- User friendly - intuitive menus
- USB-interface with support of the DG8SAQ VNWA Software
- Complete Kit supplied
High precision instrument ideal for measurement of antennas, cables and other one port devices
There are no special offer products to list.
23 April 2020 - SDR-Kits is still shipping
Corona Virus and Shipping Delays.
Please note that postal deliveries in many countries are severely
disrupted and subject to delay. To avoid disappointment, please check the current position for international post
from the UK before
placing your order.
Courier shipping service currently appears to be
operating in many countries without significant delays. We have introduced a Economy Courier Service option for some European Customers.
Special Offer - Lower price! FA-VA5 Antenna Analyzer Full Kit now sells for £159.95 incl VAT £133.30 export price
SDR-Kits new products announcements on 26 March 2020
- Magi-Cal Automatic Calibrator - this product has been re-launched is shipping now from stock
- A 99% assembled version of the popular FA-VA5 Antenna Analyzer requiring only 10-15 minutes assembly time is now available at popular request
- Back in stock is a new L-band Antenna AS154 with 10 meter RG58 cable for the 1540 MHz Inmarsat band, designed for permanent outdoor installation
SDRplay RSPdx Available from our Webshop! A replacement for the highly successful RSP2
and RSP2pro models, this new SDR Receiver has been extensively
redesigned to provide enhanced performance including additional and
improved pre-selection filters, improved intermodulation performance,
the addition of a user selectable DAB notch filter and more software
selectable attenuation steps. Read more
New! Second L-Band Antenna available for 1615 - 1630 MHz Iridium band to complement existing L-band Antenna for Inmarsat Band
FA-VA5 - New Firmware version V1.09 available: for details see here
New! FA-VA5 600 MHz Antenna Analyzer Kit goes on sale! SDR-Kits is pleased to introduce a 600 MHz Antenna Analyzer Kit, designed to meet the requirements of all Radio Amateurs. The FA-VA5 is a portable instrument, offering precise one port vector measurements up 600 MHz, with up to 40 hours battery life from 2 AA batteries at a very competitive price. Assembly of the kit consists of soldering 12 through hole components and typically takes only few hours, aided by a quality 35 page full-colour Assembly and User manual. The FA-VA5 Antenna Analyzer is an ideal companion instrument to our DG8SAQ Vector Network Analyzer. Both instrument use the highly rated DG8SAQ Vector Network PC Application... read more
Also Available - High Quality Presentation Case for safe storage of VA5 Kit and Accessories
BNC Bracket for VNWA 3 and 3EC now available
In response to requests from existing VNWA Users SDR-Kits have introduced a simple and cost effective BNC Adaptation Kit to convert the VNWA for use with BNC Connectors. The conversion procedure should take less than 20 minutes, and is easily reversible. A new 600MHz 3pc BNC Calibration Kit is also available, with a 4pc Kit to follow shortly.
